SKU: 53790
Viking Planus Burger Former & Stacker
Fully automatic burger forming machine with 40lt hopper and outfeed conveyor, provided with security cover. Standard model equipped with paper interleaving system.
Machine is equipped with an output conveyor length 1 meter. By means of a touch screen the operator can program the number of burgers to stack and the distance between stacks.
Programs can be saved in order to recall the stored disposition of different types of burgers. Completely built out of AISI 304 stainless steel and other approved materials for food industry according to the Machine Directive 2006/42/CE.
Machine equipped with automatic wire cleaning system.
Product image with upgraded 60lt Hopper. 40lt Hopper standard.
Submit An Enquiry
Please fill out this form and we will be in touch
Standard Specifications
Copy link to this section| Machine Capacity | adjustable, up to 2300 - 3300 pieces/hr |
| Burger Weight | variable 70 - 180g at 100mm diameter |
| Burger Diameter | 100mm |
| Hopper Capacity | 40L |
| Outfeed Belt Length | 1 meter |
| Machine Dimensions (L x W x H) incl. outfeed belt | 1425 x 807 x 2185mm |
| User Interface | Touchscreen & Programmable |
| Hygiene | Disassembled without tools for quick cleaning |
| Power | 240V - 1kW |
| Net Weight | 200kg |
Features
Copy link to this section
Ergonomic
1m Conveyor with Shield
Easy Access to Drum
No Tools Required
Large 40lt Hopper
Upgrade to 60lt Available
Hopper Quick Release
Latch Quick Release System
Different Shape Inserts Available
Nuggets, Koftas, Sliders, Burgers & More
Dual Motor Fitting
For Easy Cleaning
On Wheels
Mobile
Paper Feed
Quick & Simple to Fit New Papers
Paper Feed Release
Quick Setup
Custom Programs
Completely Automate the Workflow

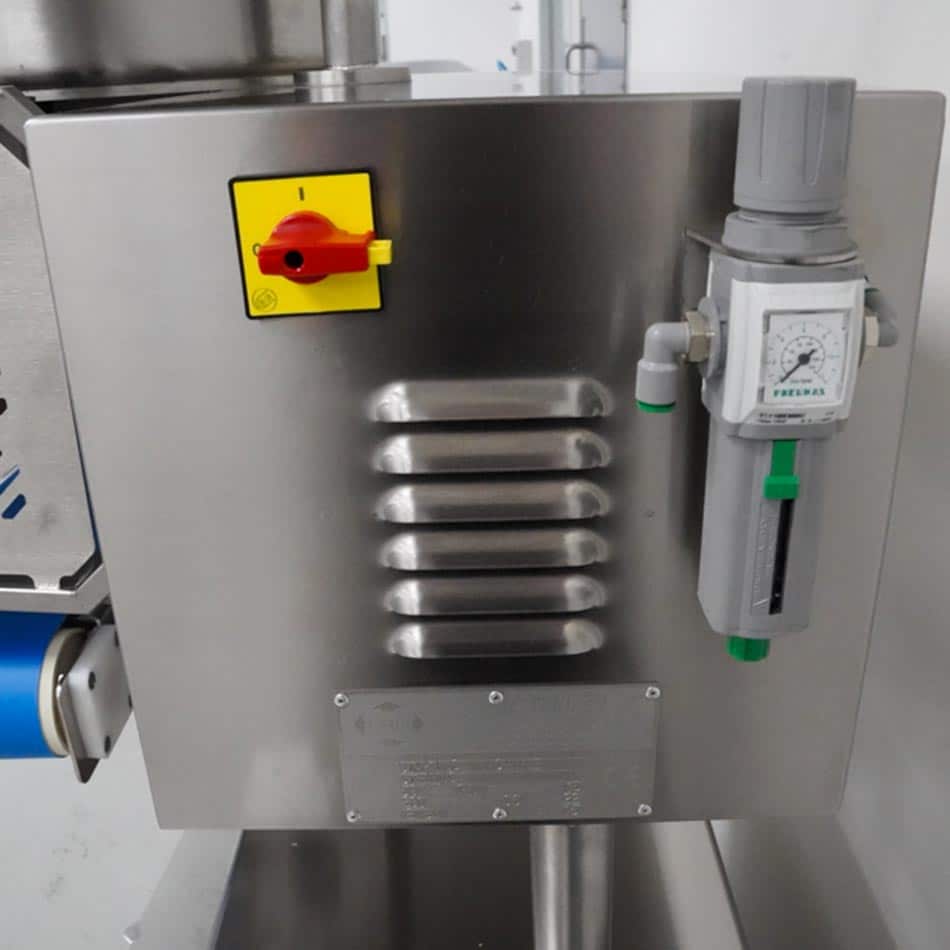

Services Required
Air & Single Phase Power

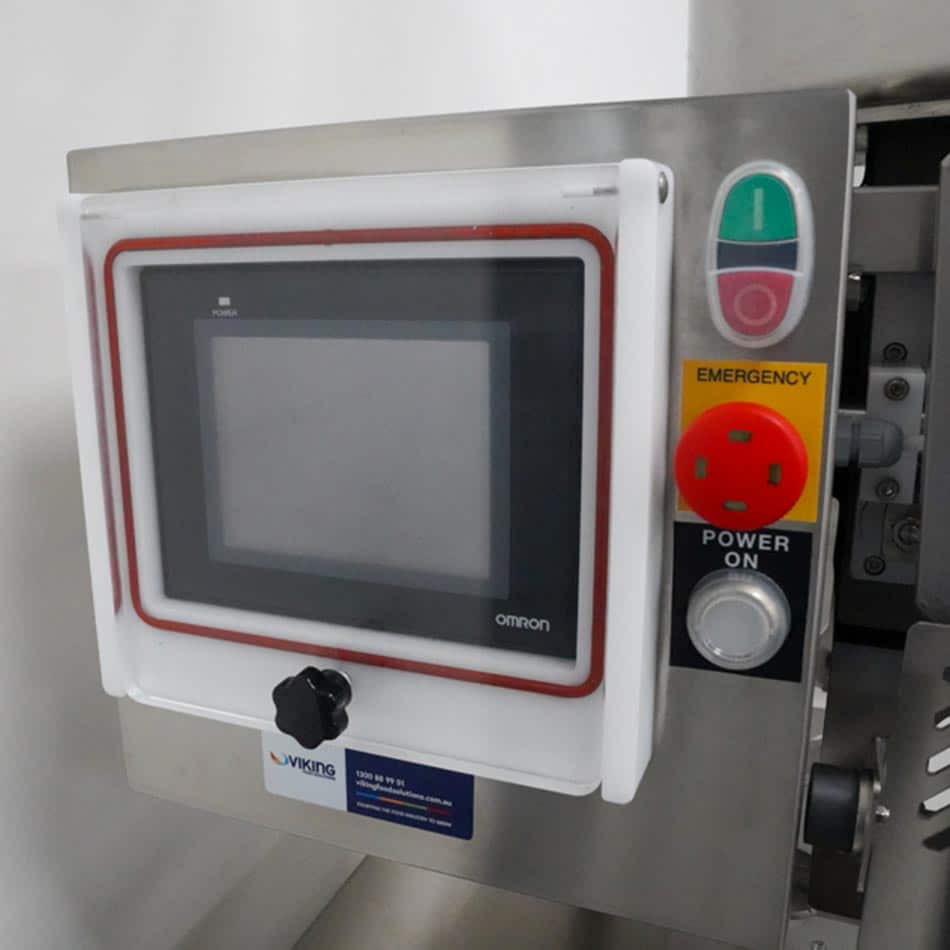

User Display Cover
To Protect From Splashing
